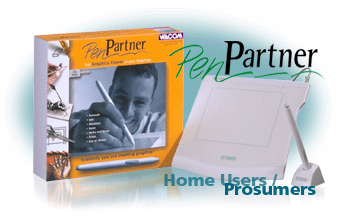

PenPartner

Discover how creative you and your computer can be with PenPartner. With no need for cable or batteries, pointing and clicking with the WACOM PenPartner UltraPen is fast and accurate in any program. What’s more, it makes drawing expressive pencil lines or making sensitive strokes with an airbrush, paintbrush or felt pen easy and precise. Just like with an ordinary pen or pencil, you can control exact strokes of a line. Edit and retouch photos, draw, paint and erase with nothing short of 100% control. And if you like you can keep your mouse.

Thin ergonomic design
Tablet dimensions (h x w): 181 mm x 196 mm,
effective drawing area (h x w): 96 mm x 128 mm
Resolution: 1000 lpi,
Accuracy: � 0.5 mm
LED shows mode and selected point
Power via keyboard or PS/2 port (PC) or ADB port (Macintosh)

Pressure-sensitive graphics pen without cable or batteries
Simply use the pen’s other end to erase, shade or lighten colour
Pressure-sensitive: 256 levels (tip and eraser)
Expressive, intuitive and precise photo-editing, drawing and painting
Contoured, user-friendly pen design
Programmable side-switch

The PenPartner comes with:

PenPartner graphics tablet
PenPartner UltraPen
Replacement nib and pen stand
Quick Installation Guide
CD-ROM with drivers and manual

	PenPartner (PC)	PenPartner (Mac)
Active area (W x D)	128.0 x 96.0 mm (5.04 x 3.78 in)	128.0 x 96.0 mm (5.04 x 3.78 in)
Physical size (W x D x H)	196.0 x 181.0 x 7.0 mm (7.72 x 7.13 x 0.28 in)	196.0 x 181.0 x 7.0 mm (7.72 x 7.13 x 0.28 in)
Cable length	2.0 m (6.6 ft)	2.0 m (6.6 ft)
Power consumption	0.5 watts	0.5 watts
Power requirements	DC 5V 100 mA, from keyboard or PS/2 port	DC 5V 100 mA, from ADB port
Weight	430 g (0.949 lb)	430 g (0.949 lb)
Resolution	39.4 lpmm/1000 lpi	39.4 lpmm/1000 lpi
Accuracy (overall with pen)	0.5 mm (0.02 in), maximum	0.5 mm (0.02 in), maximum
Pressure levels (pen and eraser)	256 levels	256 levels
Maximum reading height	5 mm (0.2 in)	5 mm (0.2 in)
Report rate	100 points per second	100 points per second
Communication interface	Keyboard or PS/2 port	ADB port
Connector	DIN-5-pin (keyboard) or Mini-DIN-5 (PS/2)	Mini-DIN-4
Operating temperature	5�C to 40�C (41�F to 104�F)	5�C to 40�C (41�F to 104�F)
Storage temperature	-10�C to +60�C (14�F to 140�F)	-10�C to +60�C (14�F to 140�F)
Operating temperature humidity	20% to 80% non-condensing	20% to 80% non-condensing
Storage relative humidity	90% or less non-condensing	90% or less non-condensing
Compliance	FCC class B, VCCI class B CE (EN 50 082-1, EN 55 022 Class B)	FCC class B, VCCI class B CE (EN 50 082-1, EN 55 022 Class B)
PenPartner UltraPen
Side switch colour	light blue	blue-green
Eraser colour	light blue	blue-green
Pen tip travel	0.1 mm (0.004 in) or less	0.1 mm (0.004 in) or less
Eraser tip travel	2.0 mm (0.079 in)	2.0 mm (0.079 in)
Physical size (L x D)	140.5 x 11.4 mm (5.53 x 0.45 in)	140.5 x 11.4 mm (5.53 x 0.45 in)
Weight	11.2 g (0.395 oz)	11.2 g (0.395 oz)

Windows: Personal Computer with Windows 3.1x, NT or Windows 95, CD-ROM drive, available serial port

Macintosh: Macintosh with MacOS 7.0 or later, CD-ROM drive, available ADB port

Download: PenPartner Product Guide English
Requires: Acrobat Reader 3.0
