Overview
|
|
|
Combine the advantages of a pressure-sensitive pen and an
active matrix display, and you have got the perfect solution for anyone who needs direct
pen-on-screen input, an interface for the paperless office, or an interface for
interactive graphical input.

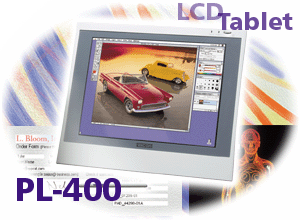

The PL-400 with its ultra-fast digital video card for the
best in large-size display tablets is the first choice for graphic and multimedia
designers, who require a high-resolution direct on-screen input device.
|
|
FEATURES
|
|
|
  |
- Write or draw directly on the built-in LCD display as easily
as you would with pen and paper
- Includes the exclusive UltraPen, the pen that's
cordless, batteryless, pressure-sensitive and has a built-in eraser, so it lets you work
naturally and intuitively
- 256 levels of pressure-sensitivity for smooth colour
variation, hand-drawn images and shading
- Highly durable glass surface resists scratches
- The UltraPen doesn't require any batteries, so it's
maintenance free
- With an accuracy of �0.02 inches, the PL-400 are more
accurate than a touch screen, light pen, or mouse
- The PL-400 includes a digital LVDS video card, for the
fastest operation possible
|
|
Configuration
|
|
|
The PL-400 comes with:
- PL-400 LCD Tablet
- Ultra Pen 811E
- LVDS Video Board (PCI)
- Connection Kit
- AC adaptor
- Wacom Tablet Driver
|
|
Specifications
|
|
|
|
PL-400 |
PL- 300 |
| Tablet
dimensions |
348 x 297 x 41 mm
(13.7" x 11.7" x 1.6") |
290 x 254 x 38 mm
(11.4" x 10" x 1.5") |
| Tablet
active area |
272 x 203 mm
(10.7" x 8") |
211 x 157 mm
(8.3" x 6.2") |
| Pressure
sensitivity |
256 levels |
256 levels |
| Screen
size |
33.8 cm (13.3") |
26.4 cm (10.4") |
| LCD |
Active matrix colour TFT |
Active matrix colour TFT |
| LCD
resolution |
1,024 x 768 pixels (XGA) |
800 x 600 pixels (SVGA) |
| Color
depth |
262,144 colours (18 bit) |
262,144 colours (18 bit) |
| Weight |
3.2 kg (6.4 lb) |
2.2 kg (4.4 lb) |
| Accuracy |
>� 0.5 mm (0.02") |
� 0.5 mm (0.02") |
| Reading
height |
5 mm (0.20") |
5 mm (0.20") |
| Power |
DC 15 Volt, 1.3 Amps |
DC 15 Volt, 1.3 Amps |
| Tablet
resolution |
1,016 lpi
2,580 lines per cm |
508 lpi
1,290 lines per cm |
| Connectivity |
Connects to included 4 MB digital video card (LVDS) and to the RS-232-C / RS-422
serial port |
Connects to standard VGA video cards and to RS-232-C / RS-422
serial port |
| Screen
adjustment |
Automatic adjustment |
Brightness, contrast, horizontal / vertical position, horizontal
size, focus |
| Software
compatibility |
Supported by all Macintosh / Windows-based applications that support a mouse and
byall pressure-sensitive graphics applications |
Supported by all Macintosh / Windows-based applications that
support a mouse and byall pressure-sensitive graphics applications |
|
|
Requirements
|
|
|
Windows:
PL-400: Personal computer with Windows NT 3.5, or Windows 95 or later, 3.5" disk
drive, available serial port, available PCI slot
Macintosh:
PL-400: All PCI bus Power Mac computers running Apple System 7.0 or later, 3.5" disk
drive, available serial port, available PCI slot
|
|
|
